Project Overview

案例概述

Solareast Heat Pump Zero-Carbon Laboratory Building (2023–present), with a total floor area of 32,000 m² across four stories, is strictly designed around the core concept of a "Zero-carbon Building." As the centerpiece of the zero-carbon park, it serves as a key platform for clean power generation, cooling, and heating, as well as a critical node for load regulation and energy optimization.

日出东方热泵零碳实验楼（2023年至今）总建筑面积32000平方米，共4层，严格遵循“零碳建筑”核心理念。作为零碳园区的核心，它是清洁发电、供冷供热的关键载体，也是负荷调节与能源优化的重要节点。

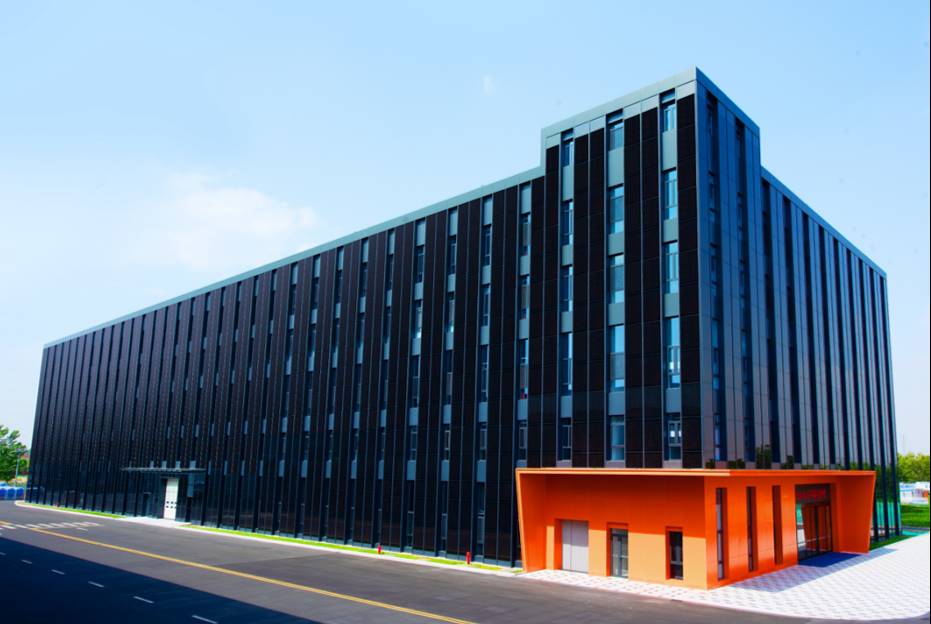

The southern and western facades are equipped with customized black monocrystalline silicon heterojunction (HJT) photovoltaic modules that integrate power generation with architectural aesthetics. The rooftop distributed PV system has a total capacity of 765 kWp, generating approximately 1.07 million kWh annually—enough to meet the building’s daily electricity demand. An 800 kW / 1,720 kWh lithium battery energy storage system is also installed to enhance self-consumption of solar power and deeply integrate photovoltaic, storage, and building functions.

建筑南、西立面采用定制化黑色单晶硅异质结（HJT）光伏组件，兼具发电与装饰功能；屋顶分布式光伏总容量达765kWp，年发电约107万kWh，满足日常用电需求。配套800kW/1720kWh锂电池储能系统，提升光伏自发自用率，实现光-储-建深度融合。

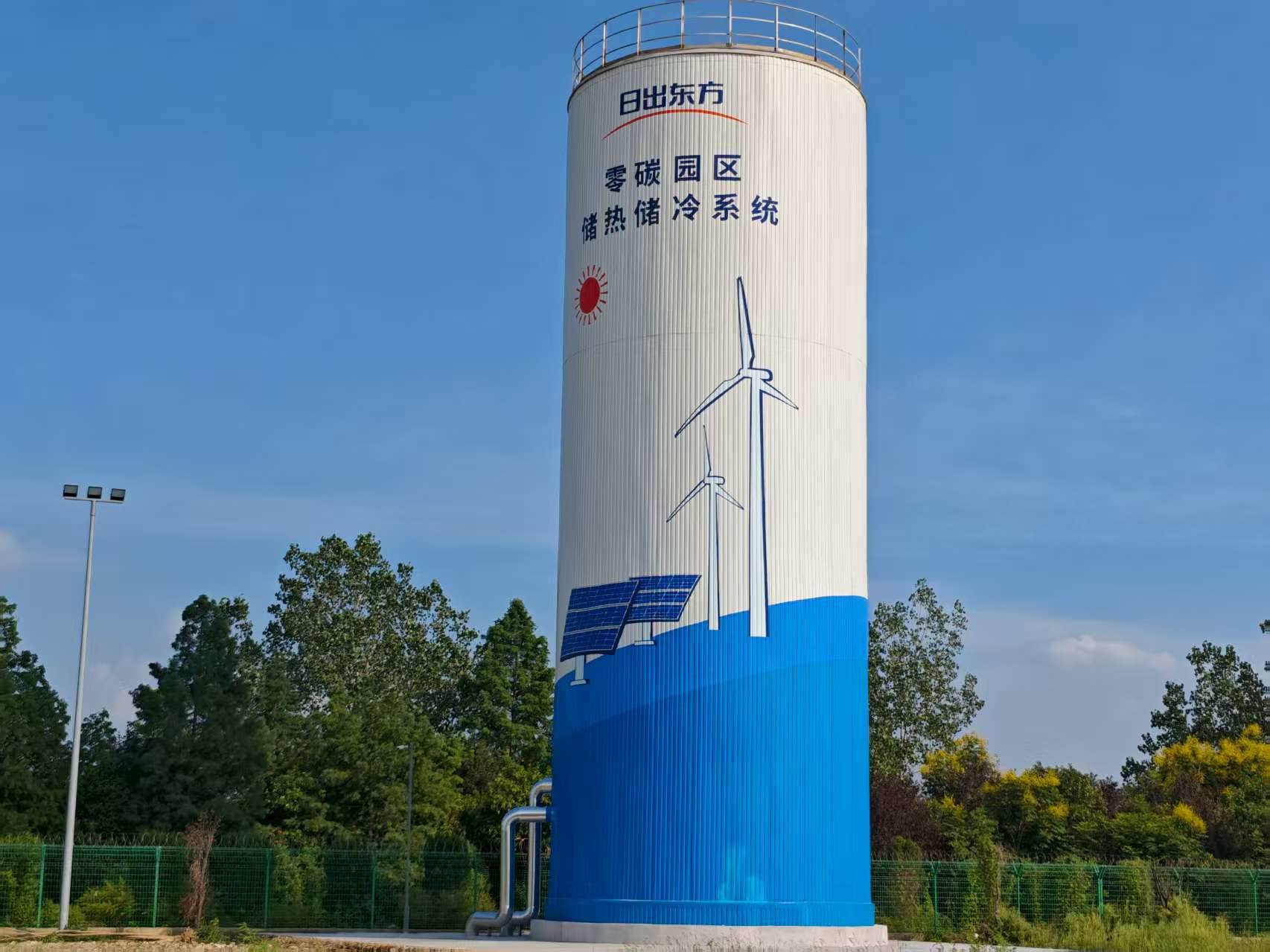

For heating and cooling, the building uses a 1,082 kW high-efficiency magnetically levitated ground-source heat pump (with a seasonal COP of 6.6) supported by 168×120-meter-deep ground heat exchangers, along with seven 181 kW variable-frequency air-source heat pumps. A 1,000 m³ stratified thermal storage tank (with a cooling capacity of 7.3 MWh) is intelligently controlled to optimize energy charging/discharging strategies, increase photovoltaic consumption, improve system efficiency, and significantly reduce operational costs.

冷热供应采用1082kW高效磁悬浮地源热泵（COP达6.6）及168口120米深地埋管换热井，并辅以7台181kW变频空气源热泵。1000m³分层蓄能钢罐（蓄冷量7.3MWh）通过智能算法优化储热/冷策略，提升光伏消纳与系统能效，显著降低用能成本。

Company/Organization Profile

机构简介

Solareast Group, established in 1999, is a publicly listed technology enterprise group with the mission of "Cleaning World, Beautiful Life." It’s core businesses span solar thermal energy, air-source heat pumps, energy storage, integrated PV-storage systems, and healthy home products. The group owns renowned brands such as Sunrain, Micoe, and SACON, serving over 35 million households and more than 20,000 commercial clients globally.

日出东方是一家创立于1999年的上市科技企业集团，以“清洁世界，美好生活”为使命。主营业务涵盖太阳能光热、空气能热泵、储能、光储系统集成及健康家居产品，旗下拥有太阳雨、四季沐歌、帅康等品牌，服务全球超3500万家庭及2万+工程客户。

Equipped with national-level R&D platforms and laboratories, the group has led the formulation of international standards for solar heating systems. In alignment with China’s "Dual Carbon" goals and rural revitalization strategy, the company is committed to delivering integrated clean heating and power solutions, driving low-carbon development, and establishing itself as an innovative and respected leader in the healthy, smart, and comfortable home solutions sector.

集团具备国家级研发平台和实验室，牵头制定太阳能供暖国际标准。面向“双碳”与乡村振兴，公司致力于提供清洁热能与电能系统解决方案，推动低碳发展，成为健康、智能、舒适家居领域的创新企业和受人尊敬的领先企业。

Project Outcome

项目成果

1. Intelligent grid, heat and cold network coordinated control algorithm, and efficiently co-production, co-storage and co-supply of cold, heat and electricity energy management system, make the building annual carbon emissions as low as 238 tons of CO₂. Clean energy reduces CO₂ emissions by 598 tons each year, and the net annual CO₂ emissions of the building are -360 tons, achieving zero-carbon operation.

通过电网、热网、冷网三网协同，冷、热、电联产、联储、联供智慧能源管理技术，将建筑耗能的年碳排放量降低至238吨，清洁能源每年减排CO₂达598吨，建筑每年CO₂净排放量-360吨，实现建筑零碳运行。

2. 1082kW High-efficient magnetically levitated ground-source heat pumps, with an annual comprehensive performance coefficient as high as 6.6, combined with seven 181kW inverter-driven air-source heat pumps, integrate a 1,000m³ stratified thermal storage tank, serve as an energy-efficient solution for indoor heating and cooling, saving 30%-50% energy compared to conventional air-conditioning systems.

采用1082kW高效磁悬浮地源热泵机组（全年综合性能系数值高达6.6）、7台181kW变频空气源热泵，配备1000m³储热储冷钢罐，为建筑提供全年生产、办公冷热源，比传统空调系统节能30%-50%。

3. The 1.17MWp distributed PV system - comprising BIPV solar curtain walls (407kWp) and rooftop PV arrays (765kWp) - delivers about 1.0757 million kWh of annual renewable electricity, combined with 800kW/1720kWh lithium battery energy storage system, Increasing the self-consumption rate of photovoltaic power, deeply integrate application of PV, ESS and building load, cover energy demand of whole building.

建设1.17MWp分布式光伏发电系统（BIPV光伏幕墙407kWp+屋面光伏765kWp），年发电量约107.57万kWh，配备800kW/1720kWh锂电池储能系统，提高光伏自消纳率，实现光伏、储能与建筑深度融合应用，满足全年建筑用能负荷。

Project Highlights

项目亮点

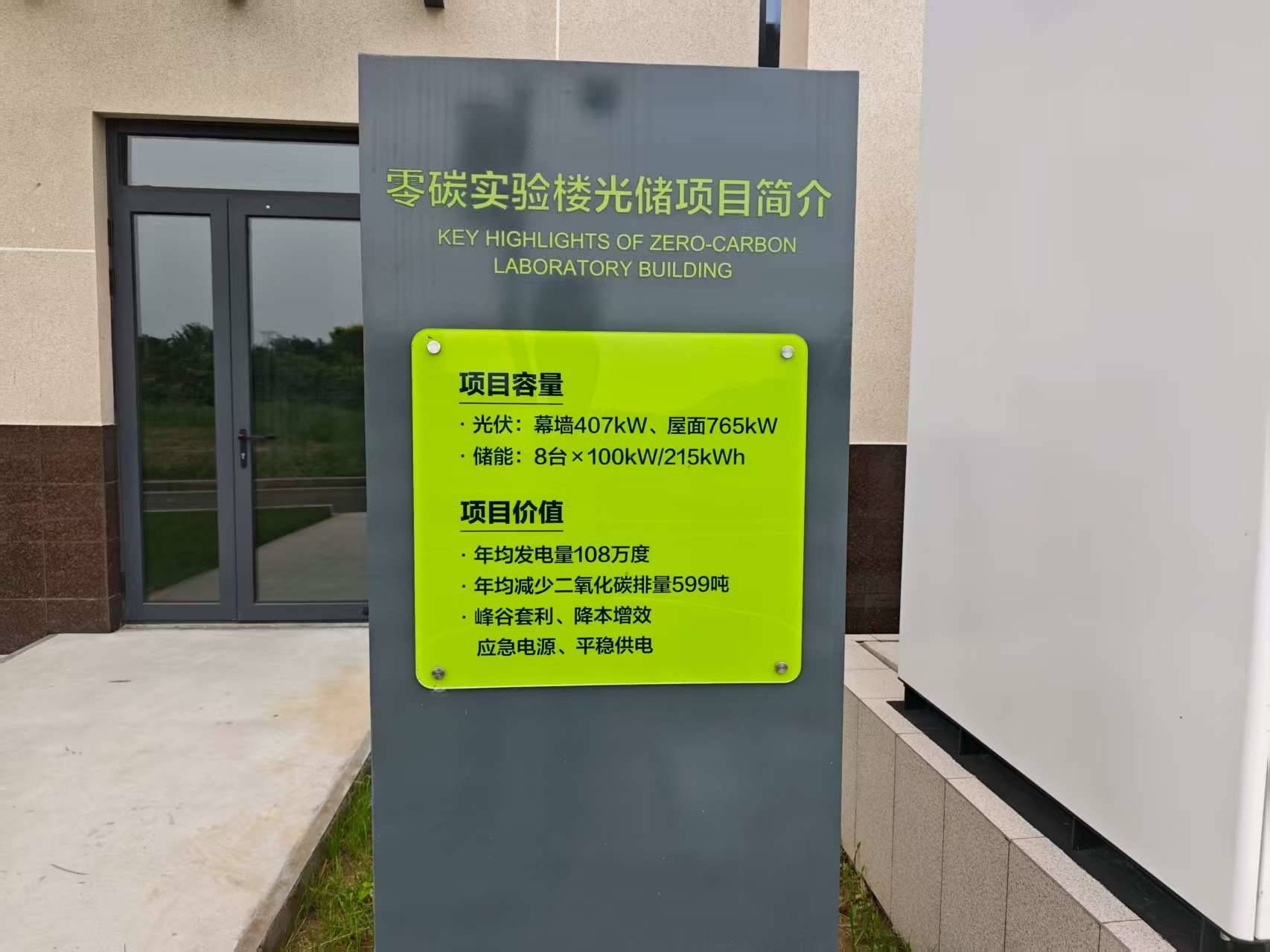

A distributed photovoltaic power generation system was constructed, comprising a 407 kWp BIPV photovoltaic curtain wall and 765 kWp rooftop PV panels, paired with an 800 kW/1720 kWh energy storage system to achieve deep integration of photovoltaics, energy storage, and the building.

建设分布式光伏发电系统（BIPV光伏幕墙407kWp+屋面光伏765kWp），并配备800kW/1720kWh储能系统，实现光伏、储能与建筑深度融合应用。

An energy management platform enables unified management and dispatch of cooling, heating, and electricity, improving energy utilization efficiency and reducing operating costs. The project was awarded the "Zero-Carbon Building Design Certification" in October 2024.

能源管理平台将冷、热、电统一管理、调度，提升能源利用率，降低运行费用。项目于2024年10月获“零碳建筑设计标识”。

Project Implementation

项目实施

1. Design Concept: To achieve the "zero-carbon" goal, the project strictly follows the core concept of "zero-carbon building" in design. While the building envelope meets thermal insulation performance requirements, it fully taps into the potential of renewable energy around the building. The clean power supply consists of curtain wall BIPV + rooftop PV + energy storage system, and the clean cooling and heating supply consists of air-source heat pump + ground-source heat pump + stratified thermal storage steel tank.

设计理念：为实现“零碳”目标，项目在设计上严格遵循“零碳建筑”核心理念，建筑本体围护结构满足保温、隔热性能的同时，充分挖掘建筑周边可再生能源应用潜力，清洁电力能源供给由幕墙BIPV+屋顶光伏+储能系统组成，清洁冷热供给由空气源热泵+地源热泵+分层蓄能钢罐组成。

2. Envelope Optimization: Cooperated with Lianyungang Architectural Design Institute, adopted leading domestic building insulation technologies and materials to reduce building air conditioning load.

围护结构优化：与连云港建筑设计院合作，引用国内领先的建筑保温技术和材料，降低建筑空调负荷。

3. PV Curtain Wall Innovation: Innovatively adopted crystalline silicon modules instead of traditional thin-film modules, achieving higher power generation efficiency.

光伏幕墙创新：创新性引用晶硅组件而非传统薄膜组件，发电效率更高。

4. Energy-Saving Technology Selection: Selected ground-source heat pump + air-source heat pump + cold and heat storage steel tank. Cooperated with China Academy of Building Research to model and simulate hourly temperature, humidity, radiation and other parameters in Lianyungang area for 8760 hours a year, combined with heat load simulation software, to optimize the building envelope and reduce building cooling and heating load.

节能技术选用：选用地源热泵+空气源热泵+储冷储热钢罐。与中国建筑科学研究院合作，针对连云港地区全年8760个小时逐时的温度、湿度、辐照等参数，结合热负荷仿真软件建模仿真，优化建筑围护结构，降低建筑冷热负荷。

5. Challenge Overcoming: Heating and cooling energy consumption accounts for about 60% of building energy consumption. To reduce carbon emissions from cooling and heating energy consumption, the building innovatively adopts the industry's most energy-efficient magnetic levitation heat pump + ground-source heat pump + cold and heat storage steel tank. This system not only has an operating energy consumption about 30% lower than conventional air conditioning systems, but also the heat storage steel tank can shift daytime load to night, making full use of valley electricity for heat storage and greatly reducing operating costs.

挑战克服：供冷供热在建筑运行过程中的能耗是建筑能耗的主要组成部分，约占建筑能耗的60%左右。为降低冷热能耗带来的碳排放，本建筑创新性采用行业内能效最高的磁悬浮热泵+地源热泵+储冷储热钢罐。该系统不仅运行能耗比常规空调系统低30%左右，同时储热钢罐可将白天的负荷转移至夜晚，充分利用谷电蓄热，大幅降低运行费用。

6. Before-and-After Comparison: Before the project, traditional buildings relied on fossil energy and conventional air conditioning systems, with high energy consumption and carbon emissions, and poor energy utilization efficiency. After the implementation of the project, the building achieves zero-carbon operation through clean energy supply and intelligent energy management, with significantly reduced energy consumption and carbon emissions, and greatly improved energy utilization efficiency, setting an example for the zero-carbon transformation of similar buildings.

实施前后对比：项目实施前，传统建筑依赖化石能源和常规空调系统，能耗高、碳排放量大，能源利用率低；项目实施后，通过清洁能源供给与智能能源管理，建筑实现零碳运行，能耗和碳排放量显著降低，能源利用率大幅提升，为同类建筑的零碳转型树立了典范。

Project Impact & Sustainability

项目影响力、可推广性与可持续性

Solareast Heat Pump Zero-Carbon Laboratory Building demonstrates remarkable technological innovation and industry exemplary value. It deeply integrates high-efficiency PV curtain walls, large-capacity energy storage, magnetically-levitated ground-source heat pumps, and multi-source coupled energy systems, supported by a smart management platform that enables coordinated regulation of electricity, heating, and cooling along with precise carbon emission accounting. This represents an advanced systematic solution in building energy efficiency and zero-carbon operation. Its integrated “PV-storage-building-thermal” design and intelligent dispatch strategy provide a replicable technological and operational model for zero-carbon construction in public buildings and park-level applications.

日出东方热泵零碳实验楼具有显著的技术创新性与行业示范价值。项目深度融合高效光伏幕墙、大容量储能、磁悬浮地源热泵及多源耦合能源系统，并依托智慧管理平台实现电、热、冷协同调控与碳排精准核算，在建筑节能与零碳运行方面形成领先的系统解决方案。其“光-储-建-热”一体化设计与智能调度策略，为公共建筑和园区级的零碳建设提供了可复制、可推广的技术与机制样板。

The project validates the feasibility of zero-carbon parks in achieving energy self-sufficiency, improved efficiency, and precise carbon management. In particular, the smart energy management platform enables real-time monitoring and dynamic optimization of park-wide energy data, offering a core tool for carbon accounting and system dispatch—accelerating the transition of zero-carbon parks from concept to reality. Future efforts will focus on enhancing the smart energy platform’s capabilities, continuously increasing regional comprehensive energy efficiency and clean energy utilization, and supporting more parks in achieving low- and zero-carbon transformation.

项目验证了零碳园区在能源自洽、能效提升和碳排精准管理方面的可行性，尤其智慧能源管理平台支持全域能源数据的实时监控与动态优化，为园区级碳核算与系统调度提供了核心工具，推动零碳园区从概念走向落地。后续将深化智慧能源平台功能，持续提升区域综合能效与清洁能源利用率，支持更多园区实现低碳和零碳转型。

(Using AI translation)

（使用AI翻译）
