Project Overview

案例概述

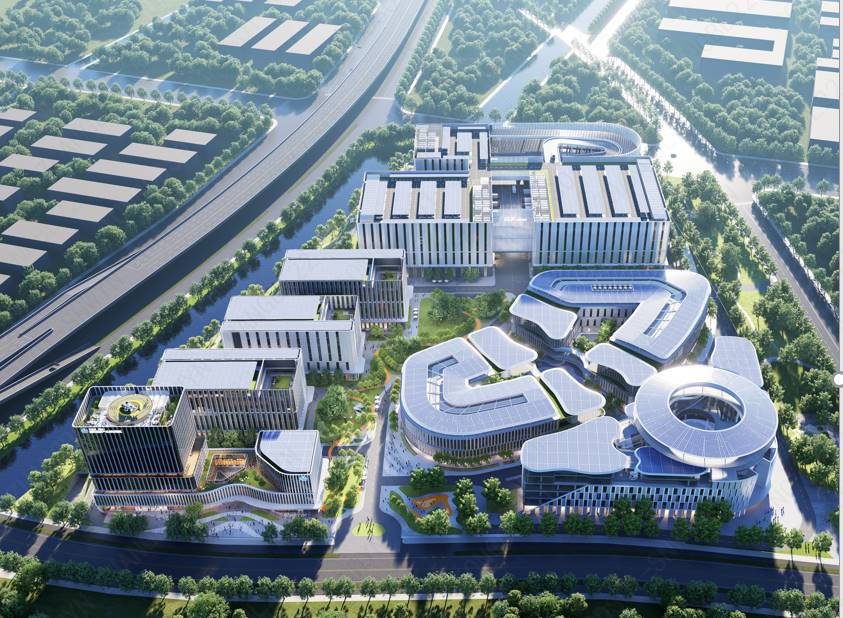

Carbon 12 Quarter, as the pioneering start-up zone of the Yangtze River Delta (Kunshan) International Low-Carbon Industrial Innovation Park, is located near the Zhoushi Middle Ring Interchange. It covers an area of 175 mu (approximately 11.67 hectares), with a built-up area of about 106,000 square meters, and is an asset of the Kunshan Northern New City Group Co., Ltd.

碳12坊作为长三角（昆山）国际低碳产业创新园区的先行启动区，位于周市中环立交附近，占地175亩，已建建筑面积约10.6万平方米，系昆山北部新城集团有限公司资产。

The project is constructed in two phases. The first phase primarily involved the renovation of three existing buildings: the Innovation Center and the Service Center, which officially opened on December 12, 2024. The Innovation Center is a comprehensive complex integrating low-carbon science popularization and exhibition, R&D office space, conference activities, and commercial support facilities. It is the first zero-carbon building project in the Yangtze River Delta region involving renovation, and has been recognized as a science and technology demonstration project under the National Key R&D Program during the "14th Five-Year Plan" period.

项目分两期建设，一期主要改造创新中心、服务中心的3幢既有建筑，于2024年12月12日正式开园。创新中心是集低碳科普展示、研发办公、会议活动、商业配套于一体的综合体，为长三角首个改造类零碳建筑，获评“十四五”国家重点研发计划项目科技示范工程。

The Service Center mainly provides commercial services and sci-tech innovation incubation support, enriching the park's facility while offering backing for start-up tech companies and entrepreneurs. The second phase will involve high-standard construction of low-carbon industrial carriers in accordance with industrial land requirements, combining with the first phase's service offerings to create a "green manufacturing+" ecosystem that integrates all segments of the industrial chain.

服务中心主要提供商业、科创孵化等服务，充实园区配套的同时，为初创科技企业和创业者提供支持。二期按照工业用地要求，高标准建设低碳产业载体，结合一期服务业，打造融合产业链各环节的“绿色制造+”业态。

To multi-dimensionally reduce overall energy consumption and achieve low-carbon operation, Carbon 12 Quarter employs 12 energy-saving and carbon-reduction technologies, including maximized utilization of photovoltaic power generation and hydrogen fuel cell combined heat and power (CHP), along with one integrated energy management platform. It has been successfully included in the National Development and Reform Commission's list of green and low-carbon advanced technology demonstration projects.

为多维度降低整体能耗，实现低碳运营，碳12坊采用光伏产能最大化利用、氢燃料电池热电联供等12项节能降碳技术，以及1个能源综合管理平台，2025年4月被评选为国家级绿色低碳先进技术示范项目。

Efforts are underway to subsequently build the Innovation Center into a platinum-level healthy building and achieve certifications such as LEED Platinum, BREEAM Outstanding, and China's Three-Star Green Building certification. The Service Center is also aiming for Three-Star Green Building certification.

后续力争将创新中心创成铂金级健康建筑，完成LEED铂金、Breeam优秀、国内绿色建筑三星等认证，服务中心完成绿建三星认证。

Company/Organization Profile

机构简介

Company Name: Yangtze River Delta (Kunshan) International Low-Carbon Industrial Innovation Park. The Yangtze River Delta (Kunshan) International Low-Carbon Industrial Innovation Park, located at No. 12 Jinlong Road, Zhoushi Town, Kunshan City, covers an area of 175 mu (approximately 11.67 hectares) with a built-up area of about 106,000 square meters.

公司名称：长三角（昆山）国际低碳产业创新园区。长三角（昆山）国际低碳产业创新园区位于昆山市周市镇金龙路12号，占地175亩，已建建筑面积约10.6万平方米。

It is an asset of the Kunshan Northern New City Group Co., Ltd. The park receives comprehensive project management (PM) and energy services from CWVS.

系昆山北部新城集团有限公司资产，由万物梁行提供全委PM及能源服务。

Project Outcome

项目成果

1. Carbon 12 Quarter comprehensively utilizes 12 energy-saving technologies, including the maximized application of photovoltaic technology and PV DC microgrids. Relying on an integrated smart operation and maintenance management system, it achieves digital management and dispatch of multiple energy sources, reducing overall energy consumption across multiple dimensions. The annual energy usage has decreased from 8.6 million kWh in similar parks to 3.8 million kWh, with green energy accounting for over 60%.

碳12坊综合运用光伏技术最大化利用、光伏直流微网等12项节能技术，依托综合智慧运维管理系统，实现多能源数字化管理和调度，多维度降低整体能耗。年均用能从同类型园区860万度下降至380万度，绿色能源占比超过60%。

2. The Phase I photovoltaic system has already been connected to the grid for power generation, producing an average of 2.1 million kWh annually and saving 1.7 million kWh of electricity, which reduces carbon dioxide emissions by 2,263 tons—equivalent to the annual electricity consumption of 1,500 households.

一期光伏已并网发电，年均发电210万度、节电170万度，减少二氧化碳排放2263吨，相当于1500户家庭的年用量。

3. The Low-Carbon Technology Exhibition Hall primarily showcases low-carbon policies, low-carbon industries, and application demonstration scenarios. It also includes a popular science interactive exhibition area for teenagers, featuring models, videos, interactive projection animations, installations, and virtual reality (VR) to facilitate engagement.

低碳科技展厅展陈低碳政策、低碳产业及应用示范场景等内容，设有面向青少年的科普互动展区，通过模型、视频、动画互动投影与装置、虚拟现实（VR）等形式呈现。

4. Since its opening in December 2024, the exhibition hall has collaborated with government and enterprise entities from various provinces and cities to organize 200 events, including low-carbon technology popularization sessions, Environment Day activities, sustainable investment salons, and industrial and commercial solar storage & virtual power plant ecosystem conferences. These activities have reached over 6,032 participants for science education and awareness.

展厅自2024年12月开放至今，已与各省市政企联合举办低碳科技科普、环境日等各类活动200场，科普人数达6032人以上。

Project Highlights

项目亮点

The first phase of the project is renovated based on existing buildings. The Innovation Center achieves 100% green power supply, making it the first zero-carbon renovation project in the Yangtze River Delta.

一期项目均在既有建筑基础上改造而来。创新中心实现100%绿电供给，是长三角首个改造类零碳建筑。

It has been recognized as a Science and Technology Demonstration Project under the National Key R&D Program during the "14th Five-Year Plan" period, successfully selected into the National Development and Reform Commission's "List of Advanced Green and Low-Carbon Demonstration Projects (the Second Batch)" and key projects of central budget investment in 2025, receiving 80 million yuan in funding support.

获评“十四五”国家重点研发计划项目科技示范工程，成功入选国家发改委《绿色低碳先进示范项目清单（第二批）》和2025年度中央预算内投资重点项目，获得8000万元资金支持。

Meanwhile, it was awarded the "Cross-Strait New Quality Productivity (Kunshan) Innovation Park" by the Cross-Strait Entrepreneurs Summit.

同时，被两岸企业家峰会授予“两岸新质生产力（昆山）创新园区”称号。

Project Implementation

项目实施

1. Deep Involvement in the Construction Phase: Laying a Solid Foundation for Low-Carbon Operations. During the construction of Carbon 12 Quarter, CWVS’s service team deeply participated in the installation and debugging of low-carbon facilities and equipment, assisting the client in supervising and inspecting construction progress to ensure the full application of 12 energy-saving and carbon reduction technologies.

深度参与建设期，夯实低碳运营根基。碳12坊建设期间，万物梁行服务团队深度参与低碳设施设备安装调试，协助客户监督、查验施工进度，保障12项节能减碳技术充分应用。

2. Simultaneously, from the perspective of low-carbon operational management, the team provided multiple adjustment suggestions in areas such as weak current systems, intelligentization, and spatial planning, completing the sorting of spatial information, computer room setup, and equipment inventories.

团队从低碳运营管理角度，在弱电、智能化、空间规划等方面提供多项调整建议，完成空间信息、机房设置、设备台账等梳理工作。

3. As the core of energy management, the high-efficiency computer room saw the team combine low-carbon operational experience with on-site equipment characteristics to complete the design and verification of working condition valve switching and tailor specialized maintenance plans, ensuring the effective implementation of low-carbon operation and maintenance strategies.

高效机房作为能源管理的核心，团队结合低碳运营经验及现场设备特性，完成工况阀门切换设计与核对，并定制专项维护方案，确保低碳运维策略有效落地。

4. Tackling Operational Challenges: Smart Empowerment for a Low-Carbon Benchmark. In the entire life-cycle of a building, the operational phase accounts for nearly half of its carbon emissions. Faced with operational challenges such as numerous specialized equipment, complex formats, and multi-phase delivery at Carbon 12 Quarter, CWVS’s energy team conducted repeated site surveys to create a targeted smart low-carbon operational plan.

攻坚运营期挑战，智慧赋能低碳名片。建筑全生命周期中，运行阶段的碳排放占比近半。面对碳12坊专用设备多、业态复杂、分多期交付的运营挑战，万物梁行能源团队通过反复勘场，针对性打造智慧化低碳运营方案。

5. Dynamically coordinating equipment operating status through energy and carbon analysis to balance the optimal efficiency of various systems; strengthening inspections of key energy operation and maintenance points; and formulating comprehensive fire protection and safety emergency plans to achieve carbon reduction from every detail.

通过能碳分析动态统筹设备运行状态，平衡各系统最佳效率；加强能源运维重点位置巡查，制定综合消防与安全应急预案，从细节实现减碳。

6. Additionally, the high-end concierge team deeply studied green concepts and industry knowledge, providing high-quality support for explanations in the energy-saving technology exhibition hall, government and corporate visits, and large conference insurance. To date, they have completed 200 receptions and popular science explanations for 6,032 visitors, helping Carbon 12 Quarter build its external low-carbon image.

高端礼宾团队深入学习绿色理念与行业知识，为节能技术展厅讲解、政府企业参观及大型会议提供高品质保障，迄今已完成200场接待与6032人次科普讲解，助力碳12坊打造对外低碳名片。

7. Comparison Before and After Implementation: Before renovation, the existing buildings had high energy consumption and extensive management; after renovation, 12 energy-saving and carbon-reduction technologies and an integrated energy management platform are adopted, significantly reducing energy consumption, increasing the proportion of green energy, and realizing digital and refined operation and maintenance.

实施前后对比：改造前，既有建筑能耗高、管理粗放；改造后，采用12项节能减碳技术及能源综合管理平台，能耗大幅降低，绿色能源占比提升，实现数字化、精细化运维。

Project Impact & Sustainability

项目影响力、可推广性与可持续性

Active Energy-Saving Technologies (8 Items): 1. Maximized Utilization of Photovoltaic (PV) Technology (BAPV – Building Attached Photovoltaic). 2. PVT (Photovoltaic-Thermal) Systems (solar cogeneration for combined heat and power). 3. PV DC Microgrid Technology. 4. Smart Lighting Technology. 5. Smart Liquid-Cooled Ultra-Fast Charging Technology. 6. Water Thermal Storage (Chilled/Hot Water) for Peak Shaving. 7. PV-Driven Central Cooling Station & High-Efficiency Plant Room Technology. 8. Hydrogen Fuel Cell Cogeneration (Backup Power).

主动节能技术（8项）：1. 光伏技术最大化利用（BAPV-Building Attached Photovoltaic建筑上安装光伏）；2. PVT（太阳能热电联产系统）；3. 光伏直流微网技术；4. 智慧照明技术；5. 智慧液冷超充技术；6. 水蓄冷、蓄热错峰供能技术；7. 光伏驱动集中冷站及高效机房技术；8. 氢燃料电池热电联供补能技术（预留场地）。

Passive Energy-Saving Technologies (4 Items): 1. Natural Light Introduction via Light Guide Tubes (roof and underground garage applications). 2. Innovative Energy-Saving Curtain Wall Technology. 3. Climate-Adaptive Envelope Technology. 4. Thermal Pressure-Driven Natural Ventilation Technology.

被动节能技术（4项）：1. 屋面及地库导光管引入自然光技术；2. 创新节能幕墙技术；3. 气候适应性围护结构技术；4. 热压驱动自然通风技术。

This project is the first zero-carbon renovation project in the Yangtze River Delta and has been recognized as a Science & Technology Demonstration Project under the National Key R&D Program during the "14th Five-Year Plan" period. Its integrated application of multiple energy-saving technologies and renovation model of existing buildings have strong promotability and can provide a reference for similar low-carbon park construction.

该项目是长三角首个改造类零碳建筑，获评“十四五”国家重点研发计划项目科技示范工程。其多项节能技术的集成应用及既有建筑改造模式具有较强可推广性，可为同类低碳园区建设提供参考。

(Using AI translation)

（使用AI翻译）
