Project Overview

案例概述

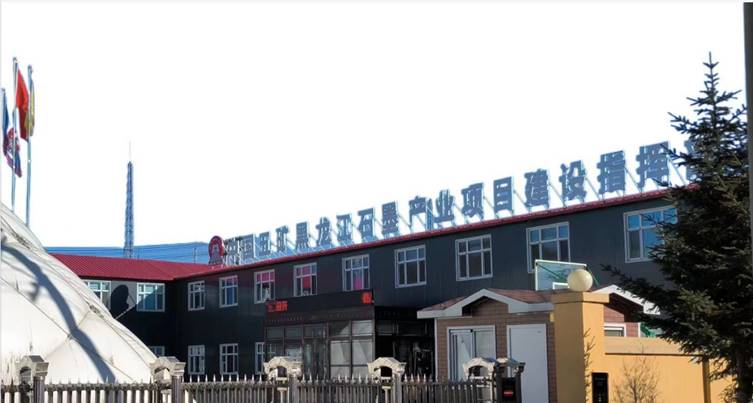

The Yunshan Graphite Mine in Luobei County, Hegang City, is located in Hegang City, Heilongjiang Province. The Yunshan Graphite Mine in Luobei County is situated within Yunshan Town, Luobei County, Hegang City, Heilongjiang Province. The mine has advanced graphite processing technology and complete facilities, enjoying unique advantages in graphite production and transportation. It is the graphite mine with the largest reserves in Asia.

鹤岗市萝北县云山石墨矿区位于黑龙江省鹤岗市萝北县云山镇内，矿区石墨加工技术先进、设施完善，在石墨生产和运输方面具备得天独厚的优势，是亚洲石墨储量第一的石墨矿。

The heating system adopts a distributed multi-energy complementary energy storage type three-terminal integrated multi-feedback smart heating system. It thoroughly implements the application of new technologies such as energy transformation and upgrading for heating, smart mines, and mining Internet of Things. The project was initiated in November 2022.

供暖采用分布式多能互补储能型三端一体化多重反馈智慧供热系统，深入贯彻供暖能源转型升级、智慧矿山、矿业物联网等新技术运用，项目于2022年11月启动。

After the project was put into operation, the following achievements were made: 1) Responding to government policy requirements: On March 30, 2022, the provincial government issued the "Comprehensive Work Implementation Plan for Energy Conservation and Emission Reduction in Heilongjiang Province during the 14th Five-Year Plan Period", which proposed: to promote the pilot demonstration of distributed "new energy + energy storage" microgrids, accelerate the intelligent development of coal mines, and achieve smart heating through the real-time integration and interaction of heating data on the smart big data cloud platform, creating a demonstration benchmark for smart enterprises and smart mining areas. 2) Reducing heating operation costs: Under the original heating method, the temperature was maintained at the same level throughout the day, and heating could not be adjusted according to the actual heat demand, resulting in significant waste of energy and costs. After the transformation, heating can be adjusted according to actual heat demand, achieving "energy storage as needed and energy supply as needed", and reaching the optimal balance point between energy conservation and cost reduction.

项目运行后取得两项核心成果：一是响应政府政策要求，契合2022年3月30日黑龙江省发布的《黑龙江省“十四五”节能减排综合工作实施方案》，推进分布式“新能源+储能”微电网试点示范，加快煤矿智能化发展，通过智慧大数据云平台实现供暖数据实时融合与交互，打造智慧企业、智慧矿区示范标杆；二是降低供暖运行费用，原供暖方式全天恒温运行，无法适配用热需求，造成能源与费用浪费，改造后实现“按需蓄能、按需供能”，达成节能与节费的最优平衡。

Company/Organization Profile

机构简介

Shenyang Hengjiu Antai Environmental Protection and Energy Conservation Technology Co., Ltd. Located in Shenbei New District, Shenyang, it is a high-tech enterprise specializing in comprehensive energy services, cooling and heating supply using clean energy, as well as R&D, production, investment, operation, trusteeship, technical services and overall solutions for energy storage systems.

沈阳恒久安泰环保与节能科技有限公司位于沈阳沈北新区，是专业致力于综合能源服务、清洁能源冷热供应，以及储能系统研发、生产、投资运营、托管、技术服务及整体解决方案的高科技企业。

It has been recognized as a High-Tech Enterprise, National-Level Demonstration Enterprise of Service-Oriented Manufacturing, Power Demand Side Management Service Organization (Level II Qualification) of the Ministry of Industry and Information Technology of the People's Republic of China, Demonstration Enterprise of Power Demand Side Management in the Industrial Sector, Provincial Gazelle Enterprise, Specialized, Refined, Peculiar, and Innovative Small and Medium-Sized Enterprise, Provincial-Level Enterprise Industrial Design Center, Municipal-Level Integrity Demonstration Enterprise, Municipal-Level Technology Giant Enterprise, Shenyang Municipal Enterprise Technology Center, Vice-Chairman Unit of the Energy Storage Branch of Liaoning Electric Power Industry Association, and Co-construction Unit of the National Energy User-Side Energy Storage Innovation and R&D Center (in preparation).

公司已被认定为高新技术企业、国家级服务型制造示范企业、国家工信部电力需求侧管理服务机构（二级资质）、工业领域电力需求侧管理示范企业、省瞪羚企业、专精特新中小企业、省级企业工业设计中心、市诚信示范企业、市科技小巨人企业、沈阳市企业技术中心、辽宁省电力行业协会储能分会副会长单位、国家能源用户侧储能创新研发中心（筹）共建单位。

Project Outcome

项目成果

1. Environmental benefits: Under the environmental pressure of reforming the electricity pricing system and achieving China's "dual carbon" goals, the use of clean energy for heating has received great attention, and a series of policies have been introduced, such as the "Notice of the National Energy Administration on Adapting to Local Conditions for Renewable Energy Heating" on January 27, 2021. The document points out that we will adhere to pilot projects first, encourage the construction of local power grids and microgrids with clean energy as the main body, and support the use of wind power, photovoltaics, energy storage, and microgrids for heating in northern regions.

环境效益：在电力价格体制改革与“双碳”目标的环保压力下，清洁能源供暖备受重视，国家出台多项支持政策，如2021年1月27日《国家能源局关于因地制宜做好可再生能源供暖工作的通知》，明确试点先行，鼓励建设以清洁能源为主体的局域电网和微电网，支持北方地区采用风电、光伏、储能和微电网方式取暖。

2. Energy saving and emission reduction (reduction of pollutants): In order to achieve the action plan of peaking carbon emissions before 2030, China has put forward higher standards and stricter goals for multiple high energy consuming areas. Among the "Ten Actions for Peaking Carbon Emissions", there is the "Carbon Peaking Action for Urban and Rural Construction", calling on the whole country to promote the green and low-carbon transformation of urban and rural construction. The system was put into operation for heating in the 2022 heating season. After the project was completed, it greatly reduced the emissions of pollutants in the atmosphere, saved about 648 tons of standard coal per heating season, reduced about 1615.14 tons of carbon emissions per heating season, generated about 440.64 tons of dust, 48.6 tons of sulfides, and 24.3 tons of nitrogen oxides.

节能减排量（污染物减少量）：为落实2030年前碳达峰行动方案，我国推进城乡建设绿色低碳转型。该系统于2022年供暖季投入使用，建成后大幅降低大气污染物排放，每个供暖季可节约标准煤约648吨，减少碳排放量约1615.14吨、粉尘约440.64吨、硫化物约48.6吨、氮氧化物约24.3吨。

3. Social benefits: At present, China's coal industry is in a critical period of deepening reform. The country has successively issued guiding policies such as "Made in China 2025", "Guiding Opinions on Accelerating the Intelligent Development of Coal Mines", "Digital Longjiang" Development Plan (2019-2025), "Technical Regulations for Intelligent Heating in Heilongjiang Province", etc. On February 25, 2020, eight ministries and commissions of the country jointly formulated the "Guiding Opinions on Accelerating the Intelligent Development of Coal Mines", which will promote the deep integration of modern automation, informatization, intelligent technology and advanced manufacturing technology with coal mining technology under the joint promotion of continuous policy support and continuous updating and breakthroughs of information technology. The successful operation of the project is of great significance for coal enterprises to achieve "intelligent" transformation, and the use of heat storage (cold storage) Technology combines big data and new Internet technology, Enhance the intelligent control and regulation capability of coal mine heating systems. It is a smart heating technology application vigorously promoted in Heilongjiang Province in recent years.

社会效益：我国煤炭行业正处于深化改革关键期，国家出台多项指导性政策推动煤矿智能化发展。项目成功投运对煤炭企业“智慧”转型意义重大，储热（蓄冷）技术结合大数据、互联网新技术，提升煤矿供热系统智慧控制调节能力，是黑龙江省近年大力推广的智慧供热技术应用。

4. Economic benefits: Explore the establishment of a renewable energy heating investment and operation model that conforms to market-oriented principles. Encourage local governments to actively support renewable energy heating projects. But with the growth of installed capacity of clean energy generation (such as wind power) in China, the issue of wind power consumption cannot be ignored due to the limitations of the power grid's transmission and reception capacity. Thermal storage (cold storage) technology plays a significant role in both the electric and thermal fields. The power regulation of valley electric solid thermal storage heating is flexible and variable, which can provide heating services, balance the peak valley difference of the power grid, increase electricity load, play peak shaving characteristics, improve the utilization rate of existing power facilities, and avoid energy waste.

经济效益：项目探索市场化可再生能源供暖投资运营模式，储热（蓄冷）技术可消纳风电等清洁能源，平衡电网峰谷差值，增加用电负荷，发挥调峰特性，提高既有电力设施利用率，避免能源浪费，缓解电网接纳压力。

Project Highlights

项目亮点

The distributed multi-energy complementary energy storage type three-terminal integrated multiple feedback smart heating system, through off-peak electricity energy storage, realizes the transfer of energy in time and space. It can give priority to the use of existing resources, such as absorbing abandoned wind and abandoned electricity, and improving the penetration rate of renewable energy in the power grid. Many places have included it in the clean heating subsidy system to accelerate commercial promotion, and a virtuous ecological circle of mutual pursuit between project personnel and users has been formed.

分布式多能互补储能型三端一体化多重反馈智慧供热系统，通过低谷电储能实现能源时空转移，优先利用既有资源（如消纳弃风弃电），提升电网可再生能源渗透率。多地将其纳入清洁供暖奖补体系，加速商业化推广，构建了项目人员与用户双向奔赴的良性生态。

Project Implementation

项目实施

1. This project is for heating a newly built mining area, using solid thermal storage devices for heating. While meeting the heating demand, it reduces heating costs and carbon emissions, responds to government policies, and creates a smart mining area.

该项目为新建矿区供暖项目，采用固体蓄热装置供暖，在满足供暖需求的同时，降低供暖成本与碳排放量，响应政府政策，打造智慧矿区。

2. The project implementation responds to government policy requirements in two aspects: environmental protection, promoting the energy consumption revolution, implementing the energy development strategy action plan and air pollution prevention action plan, and achieving the goal of reducing air pollutant emissions. In addition, accelerate the intelligent development of coal mines, integrate and interact real-time heating data through smart big data cloud platforms, achieve smart heating, and create a demonstration benchmark for smart enterprises and smart mining areas.

项目实施响应政府政策要求，一方面促进能源消费革命，落实能源发展战略行动计划及大气污染防治行动计划，降低大气污染物排放；另一方面加快煤矿智能化发展，通过智慧大数据云平台实现供暖数据实时融合与交互，打造智慧企业、智慧矿区示范标杆。

3. This project considers the different energy consumption needs and patterns of buildings in mining areas, and based on the design principles of "comfort, energy efficiency, and reliability", solves the energy consumption needs of mining areas through multi-dimensional technology integration. Adopting the distributed multi energy complementary energy storage type three terminal integrated multiple feedback intelligent heating technology of Shenyang Hengjiu Antai Environmental Protection and Energy saving Technology Co., Ltd. The overall technology system adopts a centralized layout approach, with centralized monitoring through an energy management platform, combined with energy-saving measures such as three in one, multiple feedback, climate compensation, time-division temperature, and pipeline balance. It has the characteristics of intelligence, efficiency, low operating costs, environmental protection, and safety.

项目结合矿区建筑不同用能需求和规律，依据“舒适性、节能性、可靠性”设计原则，通过多维度技术集成解决矿区用能需求，采用沈阳恒久安泰的分布式多能互补储能型三端一体化多重反馈智慧供热技术。技术系统采用集中布局，通过能源管控平台集中监控，搭配三端一体、多反馈、气候补偿等节能手段，具备智能、高效、低运营费用、环保、安全的特点。

4. Construct two sets of 10KV high-voltage solid heat storage devices, using new electric heat storage materials and utilizing valley electricity for heat storage. During peak and off peak electricity periods, the heat stored is used for heat release. The equipment outputs temperature controlled high temperature water of 50 ℃~95 ℃ through a circulating water pump through wind water heat exchange, achieving heating purposes and deep peak shaving. The main projects include valley electricity heat storage devices, a primary circulation system, and an electrical control system.

建设2套10KV高压固体储热装置，采用新型电储热材料，利用谷电储热、峰平电时段放热，通过风水换热由循环水泵输出50℃~95℃可控高温水，实现供暖与深度调峰，主要工程包括谷电蓄热装置、一次循环系统与电控系统。

5. 1) Thermal storage device: including heating element, insulation layer, thermal storage material, heat exchanger, circulating fan, etc. Adopting a normal pressure hot air internal circulation system. 2) Circulating system: including primary network circulating water pump, constant pressure water tank, etc. 3) Electric control system: realize the application of Internet, Internet of Things, artificial intelligence technology and multi closed-loop feedback technology, with big data expert system, remote operation and unattended. Adopting remote PLC programmable control and touch screen on-site control, real-time display of equipment operation status, and equipped with fault alarm function. At the same time of alarm, the system automatically implements protective measures, including over temperature protection, over pressure protection, low water level protection, power-off protection, low voltage protection, leakage protection and other protective functions.

蓄热装置包括发热元件、保温层、蓄热材料等，采用常压热空气内循环系统；循环系统包括一次网循环水泵、定压水箱等；电控系统融合互联网、物联网、人工智能及多闭环反馈技术，具备大数据专家系统、远程操作、无人值守功能，采用远程PLC可编程控制和触摸屏现场控制，实时显示运行状态，设有多项故障报警与保护功能。

6. Comparison before and after implementation: Before the implementation of the project, the traditional heating method was analyzed from an economic perspective, which had high energy consumption and no energy-saving advantages. In terms of heating effect, the water supply was small and the temperature fluctuation was large. After the transformation, solid thermal storage technology has achieved precise temperature control and low-carbon emissions through efficient thermal storage materials (such as magnesia bricks) with high temperature resistance and specific heat capacity, significantly optimizing the energy structure of coal mining projects and achieving a dual breakthrough in economy and environmental protection.

实施前后对比：实施前采用传统供热方式，能耗大、无节能优势，供水量小、温度波动大；改造后，固体蓄热技术通过耐高温、比热容高的高效储热材料（如氧化镁砖），实现精准控温与低碳排放，显著优化煤矿项目能源结构，达成经济性与环保性双重突破。

7. During the implementation of the project, due to its remote location and weak infrastructure, there were numerous challenges faced from design to construction, including difficulties in solving weather and transportation issues. Relevant personnel from the unit customized solutions with solid professional skills.

项目实施过程中，因矿区位置偏远、基础设施薄弱，从设计到施工面临天气、交通运输等多重挑战，单位相关人员凭借扎实专业技术定制解决方案，成功推进项目落地。

Project Impact & Sustainability

项目影响力、可推广性与可持续性

With the growth of installed capacity of clean energy generation (such as wind power) in China, the issue of wind power consumption cannot be ignored due to the limitations of the power grid's transmission and reception capacity. Thermal storage (cold storage) technology plays a significant role in both the electric and thermal fields. The power regulation of valley electric solid thermal storage heating is flexible and variable, which can provide heating services, balance the peak valley difference of the power grid, increase electricity load, play peak shaving characteristics, improve the utilization rate of existing power facilities, and avoid energy waste.

随着我国清洁能源（如风电）装机容量增长，电网接纳能力限制导致消纳问题突出，储热（蓄冷）技术在电力和热力领域作用重大。谷电固体蓄热供暖电能功率调节灵活，既能提供供暖服务，又能平衡电网峰谷差值、增加用电负荷、发挥调峰特性，提高既有电力设施利用率，避免能源浪费。

This project is a heating project for the Yunshan Graphite Mining Area in Luobei County, Hegang City. In addition, thermal storage (cold storage) technology can also be applied to ventilation and heating at the mining area wellhead, steam production, and other aspects.

该项目为鹤岗市萝北县云山石墨矿区供暖项目，此外储热（蓄冷）技术还可应用于矿区井口通风加热、生产蒸汽等场景。

At present, China's coal industry is in a critical period of deepening reform. The country has successively issued such guiding policies as "Made in China 2025", "Guiding Opinions on Accelerating the Intelligent Development of Coal Mines", "Digital Longjiang" Development Plan (2019-2025), and "Heilongjiang Intelligent Heating Technology Regulations". Under the joint promotion of continuous policy support and continuous updates and breakthroughs in information technology, it will promote the deep integration of modern automation, informatization, intelligent technology and advanced manufacturing technology with coal mining technology, which is of great significance for coal enterprises to achieve "smart" transformation. The use of heat storage (cold storage) technology combined with big data and new Internet technology will improve the intelligent control and regulation capacity of coal mine heating system. It is a smart heating technology application vigorously promoted in Heilongjiang Province in recent years.

我国煤炭行业正处于深化改革关键期，国家出台多项指导性政策，在政策支持与信息技术突破的共同推动下，现代自动化、信息化、智能化技术将与煤炭开采技术深度融合。项目采用储热（蓄冷）技术结合大数据、互联网新技术，提升煤矿供热系统智慧控制调节能力，是黑龙江省近年大力推广的智慧供热技术，对煤炭企业“智慧”转型具有重要意义。
